TNC&RP-TNC

瀏覽人數：2940

The TNC (threaded Neill–Concelman) connector is a threaded version of the BNC connector. The connector has a 50 Ω impedance and operates best in the 0–11 GHz frequency spectrum. It has better performance than the BNC connector at microwave frequencies. Invented in the late 1950s and named after Paul Neill of Bell Labs and Carl Concelman of Amphenol, the TNC connector has been employed in a wide range of radio and wired applications.

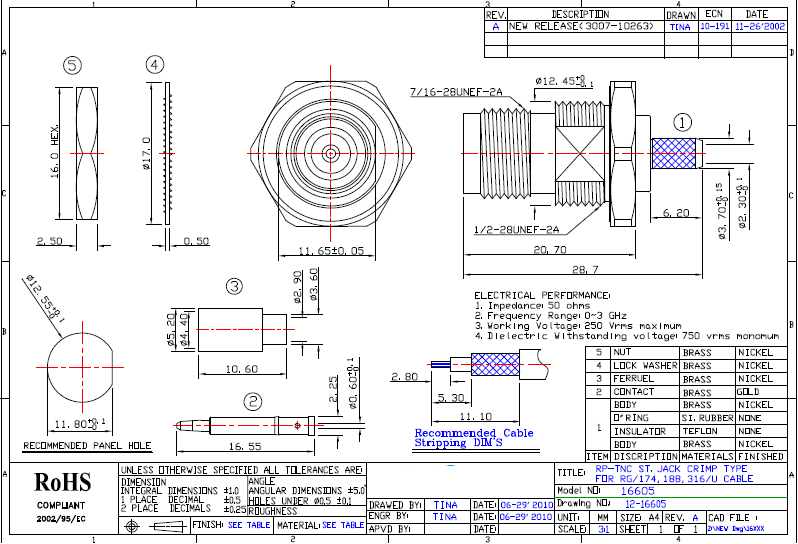

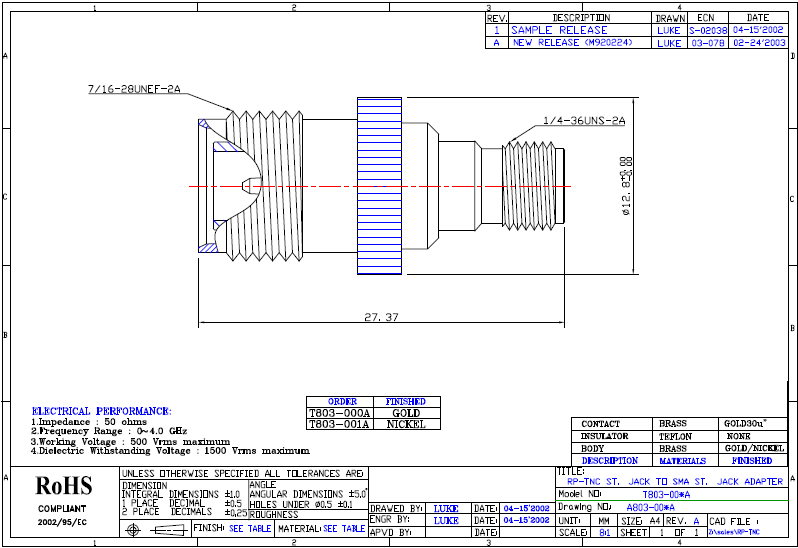

產品說明

ELECTRICAL:

Electrical Data	Detail
Impedance	50 ohms
Frequency range	0 to 11 GHz
Working Voltage	RG178=170Vrms at sea level max. RG58=335 Vrms at sea level max. RG174,316=250Vrms at sea level max.
Dielectric withstanding voltage	RG178=500 Volts rms min. RG174,316=750 Volts rms min. RG58=1000 Volts rms min
VSWR	Straight connector :1.30 max. R/A connector: 1.5 max.

MECHANICAL:

Mechanical Data	Detail
Force to engage	The torque required to engage and disengage shall not exceed 6 inch-lbs
Mating	7/16-28 threaded coupling
Coupling nut retention force	101.2 lbs min.
Connector durablity	500 matings
Cable retention force	RG178=7.3 lbs min. RG174=9.7 lbs min. RG316=12.1 lbs min. RG58= 28.7 lbs min
